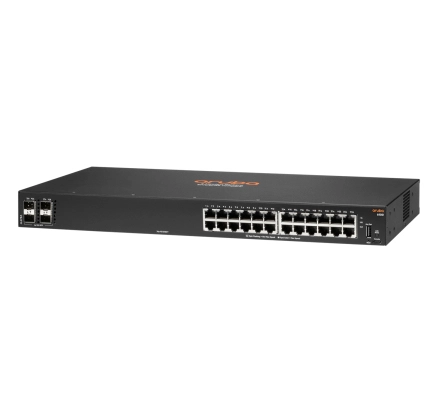

Aruba 6100 24G 4SFP+ Switch JL678A

Product
6100 24G 4SFP+

Part Number
JL678A

Switch Type
Fixed Port

Network OS
ArubaOS-CX

Routing / Switching
Layer 2 Only

Management
Fully Managed

Included Accessories


   Included Accessories
N/A

Physical Properties


   Dimensions
17.4(w) x 7.92(d) x 1.73(h) in.(44.2 x 20.12 x 4.39 cm)

   Weight
5.78 lb (2.62 kg)

Port Types


   LAN Ports
24x ports 10/100/1000BASE-T Ports

   Dual Personality Ports
N/A

   1/2.5/5/10GbE
N/A

   SFP Ports
N/A

   SFP+ Ports
4x 1G/10G SFP ports

   SFP28 Ports
N/A

   SFP56 Ports
N/A

   XFP Ports
N/A

   X2 Ports
N/A

   CX4 Ports
N/A

   10GBASE-T Ports
N/A

   QSFP+ Ports
N/A

   QSFP28 Ports
N/A

   QSFP56 Ports
N/A

   QSFP-DD  Ports
N/A

   Module Slots
N/A

   Console Port
1x USB-C Console Port1x USB Type-A Host port

Power Supplies


   Power supply slots
Fixed power supply

   Power supply requirements
N/A

Memory and Processor


   Memory and Processor
CPU: Dual Core ARM Cortex A9 @ 1.016GhzMemory and Flash: 4GB DDR3 16GB eMMCPacket Buffer: 1MB

   Gigabit Module
N/A

   10Gb Module
N/A

   Management Module
N/A

   Fabric Module
N/A

   I/O Module
N/A

Mounting


   Mounting
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting.

Performance


   100 Mb Latency
N/A

   1000 Mb Latency
N/A

   10 Gbps Latency
N/A

   40 Gbps Latency
N/A

   Throughput
95.2 Mpps

   Switching Capacity
128 Gbps

   Switch Fabric Speed
N/A

   Routing Table Size
512 (IPv4); 512 (IPv6)

   MAC Address Table Size
8,192

   MACsec Capable Hardware
No

   MACsec Software Support
No

   MACsec with EAP-TLS
No

   MACsec Capable Uplink Ports
No

Electrical Characteristics


   Description
N/A

   Voltage
100-127 VAC / 200-240 VAC

   Current
0.6 A / 0.4 A

   Frequency
50/60 Hz

   Maximum Power Consumption
Idle: 15.4WMax Power: 33W

   Maximum Heat Dissipation
N/A

   PoE power
N/A

   Notes
N/A

Management


   Management
Aruba Central, command-line interface, out-of-band management (RJ-45 Ethernet), out-of-band management (serial RS-232), SNMP Manager, Telnet, FTP, terminal interface (serial RS-232C), modem inteface, IEEE 802.3 Ethernet MIB, Ethernet MIB
