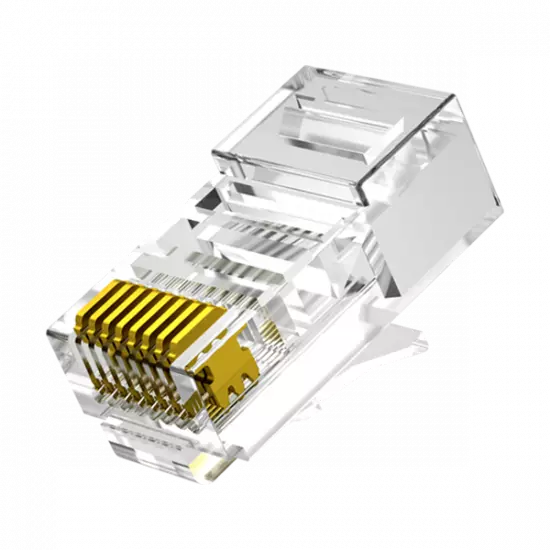

Walisec csatlakozó - RJ45-6U-TL (RJ45, Cat6, árnyékolt, 8P8C, aranyozott, Tool-less) 2db/csomag
989
Ft
Walisec csatlakozó - RJ45-6U-TL (RJ45, Cat6, árnyékolt, 8P8C, aranyozott, Tool-less) 2db/csomag
Cikkszám:
334432
Gyártó :
WaliSec
Gyártói cikkszám:
RJ45-6U-TL
Megbízhatóság:
100%
989
Ft
Garancia: 36 hónap
Várható átvétel
|
Connector Type |
|
|
Category |
Cat 6 |
|
Type |
8P8C (Eight Position, Eight Contact) |
|
Shielding |
UTP (Unshielded Twisted Pair) |
|
|
|
|
Material |
|
|
Housing Material |
Polycarbonate |
|
Contact Material |
Copper |
|
Contact Surface Material |
Gold Plating on Nickel Barrier |
|
Gold Plating Thickness |
50U (50μin or 1.27 µm) |
|
|
|
|
Electrical Properties |
|
|
Voltage/Current Rating |
125 VAC / 1.5 A |
|
Insulation Resistance |
≥ 500 MΩ |
|
Contact Resistance |
≤ 20 mΩ |
|
Dielectric Withstand Voltage |
750 V DC/AC Peak |
|
|
|
|
Mechanical Properties |
|
|
Durability |
≥ 1250 mating cycles, ≥ 250 termination cycles |
|
Wire Diameter |
ODO ≤ 6.6 mm |
|
|
|
|
Environment |
|
|
Operating Temperature |
-40°C to 70°C |
|
Operating Humidity |
RH 10% to 90% (non-condensing) |
|
Storage Temperature |
-40°C to 80°C |
|
Storage Humidity |
RH 5% to 96% (non-condensing) |
|
|
|
|
General |
|
|
Dimension |
53x18x15 mm (LxWxH) |
|
Net Weight |
6.1 g |
