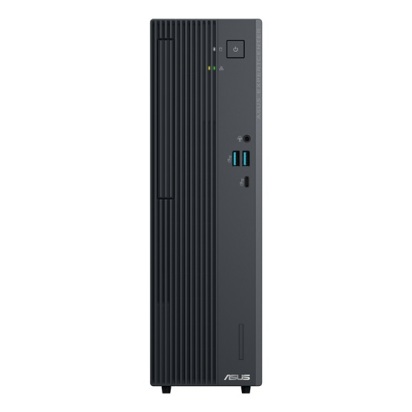

ASUS COM DT ExpertCenter P500SV-07240H0120, SFF, Intel Core 7-240H, 16GB, 512GB M.2, NOOS, Szürke

Sales Model Name
P500SV-07240H0120

EAN Code


UPC Code


WEEE
5.06

BASE UNIT
VSPF05A1-BU0010

Size
8.6L

Color
Gray

Form Factor
Small form factor

Processor
Intel® Core™ 7 Processor 240H 2.5 GHz (24MB Cache, up to 5.2 GHz, 10 Cores, 16 Threads)

CPU Cooler
Air Cooler

Chipset


DIMM Memory
16GB DDR5 SO-DIMM

Memory Speed
Memory speed is 5600MHz, and run at 5600MHz

Memory Max.
64GB

Integrated GPU
Intel® Graphics

Storage
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD

Optical Drive
Without optical drive

LAN
Intel WGI219V 10/100/1000 Mbps, non-vPro

Audio
High Definition 7.1 Channel Audio

Wireless
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card

Power Supply
180W power supply (80+ Bronze, peak 228W)

Rear I/O Port
1x RJ45 Gigabit Ethernet1x HDMI 1.41x Displayport 1.41x 7.1 channel audio (microphone, line-out, Line-in)1x Kensington lock4x USB 2.0 Type-A

Front I/O Port
1x 3.5mm combo audio jack1x USB 3.2 Gen 1 Type-C2x USB 3.2 Gen 1 Type-A1x 2 in 1 card reader SD / MMC

Drive Bay
3.5" x 1

Serial ATA
2 x SATA 6.0Gb/s ports

Expansion Slot(includes used)
1x PCIe® 4.0 x 16 (operating at PCIe® 4.0 x8)1x M.2 connector for WiFi2x M.2 2280 connector for storage2x DDR5 SO-DIMM slot

Keyboard & Mouse
Wired keyboard (USB)Wired optical mouse (USB)

Accessory
3.5" HDD assembly kit

Dimension (WxDxH)
09.30 x 29.60 x 30.90 cm (3.66" x 11.65" x 12.17")

Weight
05.06 kg (11.16 lbs)

My ASUS features
System diagnosisFan profileAppDeals

Built-in Apps
MyASUS

Adobe Creative Cloud Hard Bundle
1-month Adobe Creative Cloud Hard Bundle*Terms and exclusions apply. Offer only available in eligible markets. Eligible markets are determined at activation, and varies by region, device, and time.

Security
Discrete Trusted Platform Module (TPM) 2.0HDD User Password Protection and SecurityKensington Security Slot™(7x 3mm)

TPM


Ecolabels & Compliances
EPEAT SilverEnergy star 9.0REACHRoHS

Base Warranty
3Y Pick up/ return

Recommended Warranty Package Part number//Extension and/or upgrade service from base warran
ACX13-007003PF//3Y OnSite Service(Next Business Day)*upgradeACX13-007023PF//2Y Extension 5Y OnSite Service(Next Business Day)*upgradeACX15-012031PF//3Y OnSite Service(Next Business Day) 3Y HDD Retention*upgrade*If you would like to know the details, please contact your sales teams.

Sustainable Material_Front bezel
65% (Inkwell Grey)60% (White) PCR recycled plastic front bezel

Sustainable Material_I/O bezel
65% (Inkwell Grey)60% (White) PCR recycled plastic I/O bezel
