| 27E3QAF |
| 27" FHD IPS monitor with essential features to get the most out of long working hours. Technologies including Adaptive Sync, Flicker-Free, Low Blue Light, & full ergonomic features will support you while working and studying. |
| The AOC 27E3QAF provides all the elements you need for work or study. This model combines a large 27-inch IPS panel with a wide viewing angle and FHD resolution, eye-care features such as low blue and flicker-free mode, and built-in speakers for easy enjoyment of high-quality audio. For a tidy workstation, this model also offers cable management. To ensure maximum working comfort, the 27E3QAF is fully ergonomic. Your productivity will be complemented by adaptive synchronization and a 75Hz refresh rate to ensure a smooth and tear-free playback experience, whether you"re working on documents or watching content. |
| |
| |
| GENERAL |
| |
- Model Name: 27E3QAF
-
Brand: AOC
-
Channel: B2B, B2C, Gaming
-
Product type: Monitor
-
Product line: Essential-line
-
Design family: E3
-
Classification: Mainstream
-
Launch date (ETA): 2023-08-23T14:00:00
. |
| |
| |
| OTHER INFORMATION |
| |
- EAN: 4038986181235
-
OSD languages: English, Polish, German, Portuguese, Spanish, French, Finnish, Korean, Japanese, Chinese (simplified), Chinese (traditional), Swedish, Dutch, Italian, Russian, Czech
-
Warranty period: 3 years
-
Operation System: Windows 8.1/10/11, MacOS
-
OSD type: Normal
-
Plug & Play Compatibility: Yes, DDC/CI
. |
| |
| |
| DISPLAY INFORMATION |
| |
- Screen size (inch): 27
-
Screen size (cm): 68.6
-
Flat / Curved: Flat
-
Curvature Radius: Flat
-
Display hardness: 3H
-
Panel treatment: Antiglare (AG)
-
Pixel Pitch: 0.3114
-
Pixels per Inch: 82
-
Panel resolution: 1920x1080
-
Resolution name: FHD
-
Aspect ratio 16:9
-
Panel type: IPS
-
Backlight type: WLED
-
Refresh rate: 75 Hz
-
Response time GtG: 4 ms
-
Static contrast ratio: 1000:1
-
Dynamic contrast ratio: 20M:1
-
Viewing angle (CR10): 178/178
-
Display colours: 16.7M (8bits)
-
Brightness in nits: 300 cd/m2
-
Color Gamut: NTSC 85.3% & sRGB 99.9%
-
Panel Haze Value: 25%
-
Picture enhancement (Smartimage): Yes
-
Pixel defect policy: ISO 9241-307 Class 1
-
Support 1:1 function: No
-
Panel PPI: 82
-
Local Dimming Zones: Global Dimming
. |
| |
| |
| CABINET INFORMATION |
| |
- Bezel type (front): 3-sided frameless
-
Bezel Colour (front): Black
-
Bezel finishing (front): Texture
-
Cabinet colour (backside): Black
-
Cabinet finishing (backside): Texture
-
Light FX (RGB): No
-
LED Logo Projector: No
-
Removable stand: Yes
-
Speakers: Yes
-
Speaker power: 2 W x 2
-
Built-in Microphone: No
-
Kensington Lock: Yes
-
Vesa wallmount: 100x100
-
Quick release function: Yes
-
Sound enhancement: No
-
Stand screw spec: Thumb screw
-
VESA Mount screw Spec: M4 x 10
-
VESA Mount Support: Yes
. |
| |
| |
| ERGONOMIC INFORMATION |
| |

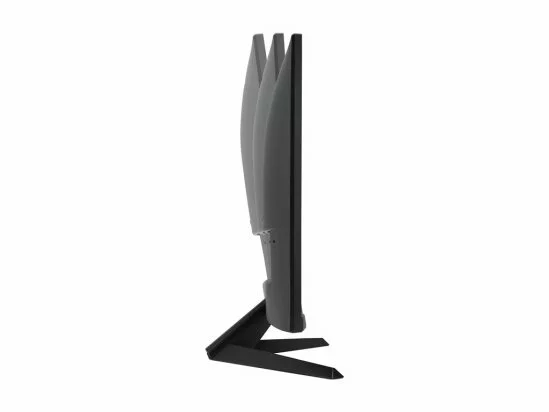

- Tilt: 3.5° ±1.5° ~ 33° ±2°
-
Height adjust (mm): 150mm
-
Swivel: 175°±5
-
Pivot: 91° ±1° ~ 91° ±1°
-
VESA Bracket Compatibility: VESA-P2
. |
| |
| |
| CONNECTIVITY INFORMATION |
| |
- HDMI: HDMI 1.4 x 1
-
Digital HDCP (HDMI version): HDCP 1.4
-
Display Port: DisplayPort 1.2 x 1
-
USB Display Link: No
-
HDMI (MHL): No
-
USB Hub: No
-
USB Hub speed :No
-
USB fast charge port: No
-
Audio Output: Headphone out (3.5mm)
-
Audio Input: Yes
-
DP HDCP version: HDCP 1.4
-
USB Hub up stream: No
-
D-SUB (VGA): 1x
-
DVI: 0x
-
RJ45: No
. |
| |
| |
| SUSTAINABILITY |
| |
- TCO Certified: 9
-
EPEAT: Silver
-
ECMA Eco declaration: Yes
-
Product carbon footprint (PCF): Yes
-
WEEE: Yes
-
RoHs compliant: Yes
-
HF: Yes
-
Post-consumer recycled plastic: 85%
-
EPA (latest version): Yes
-
CEC: Yes
-
Carton material print: Water Print (Brown Carton)
. |
| |
| |
| POWER CONSUMPTION |
| |
- Power supply: Internal
-
Power source: 100 - 240V 50/60Hz
-
Power consumption on (Energystar test method) in watts: 16.3
-
Power consumption on (typical) in watts: 18
-
Power consumption standby in watts: 0.5
-
Power consumption off in watts: 0.3
-
Power LED indicator (Operation): White/Blue Power
-
LED indicator (Standby): Orange
-
Power Switch: No
. |
| |
| |
| REGULATORY COMPLIANCE |
| |
- CB: Yes
-
CE: Yes
-
TUV-GS-Mark: Yes
-
ISO 9241-307: Yes
-
EAC: Yes
-
FCC: Yes
-
Pixel policy: ISO 9241-307
. |
| |
| |
| PRODUCT DIMENSIONS |
| |
- Product dimensions incl. base (WxHxD) mm: 614.7x396.2~544.5x201.3
-
Product dimensions excl. base (WxHxD) mm: 614.7x369.6x50.8
-
Packaging dimensions (WxHxD) mm: 820 x 481 x 162
-
Gross weight incl. package (in kg): 8.71
-
Net weight excl. package (in kg): 5.38
-
Product without stand (kg): 3.56
. |
| |
| |
| WHAT"S IN THE BOX |
| |
- HDMI cable: 1x
-
Displayport cable: 1x
-
Power Cable: Yes
. |
| |
| |
| MAXIMUM RESOLUTION BY CONNECTOR |
| |
- Default resolution by input: VGA : 1920x1080@60Hz / DP 1.2 : 1920x1080@75Hz / HDMI 1.4: 1920x1080@75Hz
-
Max resolution by input: VGA : 1920x1080@60Hz / DP 1.2 : 1920x1080@75Hz / HDMI 1.4: 1920x1080@75Hz
. |
| |
| |
