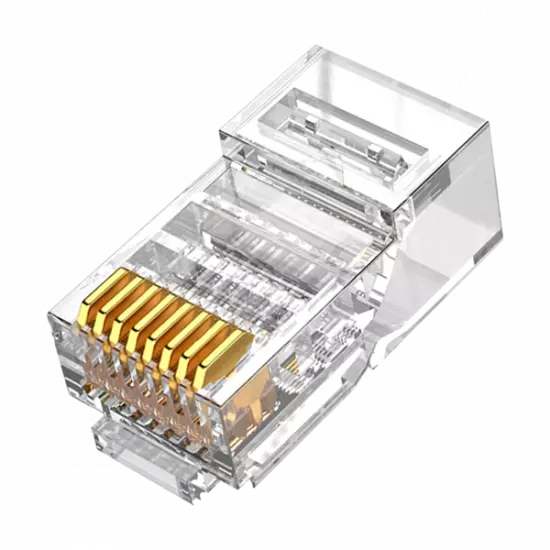

Walisec csatlakozó - RJ45-P5EU (RJ45, Cat5e, árnyékolatlan, 8P8C, aranyozott, befűzős) 100db/csomag

Connector Type

Category

Cat 5e

Type

8P8C (Eight Position, Eight Contact)

Shielding

Unshielded

Material

Housing Material

Polycarbonate

Contact Material

Copper

Contact Surface Material

Gold Plating on Nickel Barrier

Gold Plating Thickness

1U (1μin or 0.0254µm)

Electrical Properties

Voltage/Current Rating

125 VAC / 1.5 A

Insulation Resistance

≥ 500 MΩ

Contact Resistance

≤ 20 mΩ

Dielectric Withstand Voltage

1500 V DC/AC Peak

Mechanical Properties

Durability

≥ 1000 mating cycles

Wire Gauge

0.85 mm ≤ O ≤ 1.0 mm

Environment

Operating Temperature

-40°C to 70°C

Operating Humidity

RH 10% to 90% (non-condensing)

Storage Temperature

-40°C to 80°C

Storage Humidity

RH 5% to 96% (non-condensing)

General

Dimension

23x12x8 mm (LxWxH)

Net Weight

1.5 g
