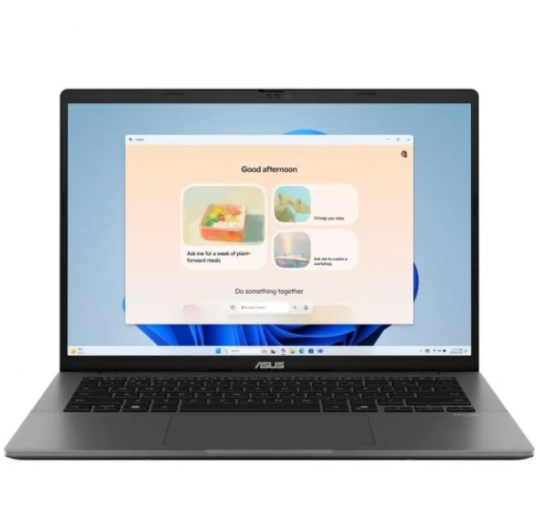

ASUS COM NB ExpertBook B1403CVA-S69177 14" FHD, i5-120U, 16GB, 512GB M.2, INT, NOOS, Szürke

Part No
90NX0811-M0B5H0

Model Name
B1403CVA-S69177

EAN Code
4711636548045

UPC Code
199291548046

WEEE
1.023

BASE UNIT
VSNX0811-BUC104




Operating System
Non-preinstalled OS

LCD cover-material
Plastic

LCD cover-color
Gentle Grey

Top case-material
Plastic

Top case-color
Gentle Grey

Bottom case-material
Plastic

Bottom case-color
Gentle Grey

Military grade
US MIL-STD 810H military-grade standard

Panel Size
14.0-inch

Backlit
LED Backlit

Brightness
300nits

Resolution
FHD (1920 x 1080) 16:9

Glare
Anti-glare display

Color gamut
NTSC: 45%

View angle(H/V)
170/170

Response time(Typ/Max) (ms)
25/35

Refresh rate
60Hz

Contrast  (Typ)
700:1

Touch Panel
Non-touch screen

Screen-to-body ratio
87 %

IPS-level
Wide view

Processor
Intel® Core™ 5 Processor 120U 1.4 GHz (12MB Cache, up to 5.0 GHz, 10 Cores, 12 Threads)

Chipset
N/A

Discrete/Share
Share

Integrated GPU
Intel® Graphics

VRAM
N/A

How to upgrade memory
Upgradable; Need to remove bottom/top case

Expansion Slot(includes used)
2x DDR5 SO-DIMM slots1x M.2 2230 PCIe 4.0x41x M.2 2280 PCIe 4.0x4

DIMM Memory
16GB DDR5 SO-DIMM

Total System Memory
DDR5 16GB

Storage
512GB M.2 2280 NVMe™ PCIe® 4.0 SSDSSD Housing for storage expansion

Front-facing camera
720p HD cameraWith privacy shutter

Wireless
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card

NumberPad
N/A

FingerPrint
FingerPrint

Keyboard type
Backlit Chiclet Keyboard

I/O ports
2x USB 3.2 Gen 1 Type-A2x USB 3.2 Gen 2 Type-C support display / power delivery1x HDMI 1.41x 3.5mm Combo Audio Jack1x RJ45 Gigabit Ethernet

Audio
Audio by DiracBuilt-in speakerBuilt-in array microphone

Battery
50WHrs, 3S1P, 3-cell Li-ion

AC Adapter
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal (Adapter+power cord)

Required charging power
Min: 55WMax: 65W*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Dimension (WxHxD)
32.45 x 21.44 x 1.97 ~ 1.97 cm (12.78" x 8.44" x 0.78" ~ 0.78")

Weight (with Battery)
1.41 kg (3.11 lbs)

Weight (w/o Battery)
1.22 kg (2.69 lbs)

Security
Kensington Nano Security Slot™(6x 2.5mm)BIOS Booting User Password ProtectionBIOS setup user passwordHDD User Password Protection and SecuritySupport Absolute Persistence 2.0 (Computrace)Trusted Platform Module (TPM) 2.0N/A

MyASUS feature
System diagnosisBattery health chargingFan ProfileSplendidTru2LifeFunction key lockWiFi SmartConnectAppDealsLink to MyASUS

MyExpert Features
N/A

Built-in Apps
AI ExpertMeet (AI features need devices with 12GB RAM or more)MyASUS

Disclaimer for Built-in Apps
Built-in Apps vary from OS SKU.*MyASUS/McAfee don"t support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu)

Reparability Index (for Belgium)
9.5

Reparability Index (for France)
9.6

Ecolabels & Compliances
Energy star 8.0FSC MixREACHRoHSTCO Certified

Base Warranty
3Y Pick up/ return

Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty
ACX13-007003NX//3Y OnSite Service(Next Business Day)*upgradeACX13-007023NX//2Y Extension; 5Y OnSite Service(Next Business Day)*upgradeACX14-017300NX//3Y HDD Retention*upgradeACX15-011800NX//3Y OnSite Service(Next Business Day); 3Y Accidental Damage Protection*; 3Y HDD_Retention*upgrade*If you would like to know the details, please contact your sales teams.

Battery warranty
Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option.

Sustainable Material_Top cover(A part)
30% PCR recycled plastic(cover or inner frame)

Sustainable Material_Keyboard frame (C part)
30% PCR recycled plastic(cover or inner frame)

Sustainable Material_Bottom cover (D part)
30% PCR recycled plastic(cover or inner frame)

Sustainable Material_Battery
30% PCR recycled plastic

Sustainable Material_Total PCR recycled plastic
28
